HF16A and HF25A SilverStitcher

Arm-type or Side Seam Staplers speed the stapling of corrugated trays and baskets, telescope, bliss and side seams; and also solid fiber drums and boxes.



The guidelines stand pretty true for most bottom box stapling applications using our staplers and a box with standard “C” flute corrugated board.

  • Single wall corrugated: Our HF stapler with normal .103”x.020” wire

  • Double wall corrugated: Our adjustable S5 models of stapler with .103”x.020” or .023” wire

  • Triple wall corrugated: Our S5 models of machines, with up to .103”x.028” Arcuate wire



The machines include a direct mechanical foot pedal, or optional fatigue-reducing electric trip pedal that also allows for larger boxes to be secured.

This model offers the proven productivity of ISP's type H stapling head, and can be ordered with optional Arcuate forming of flat wire for more strength.

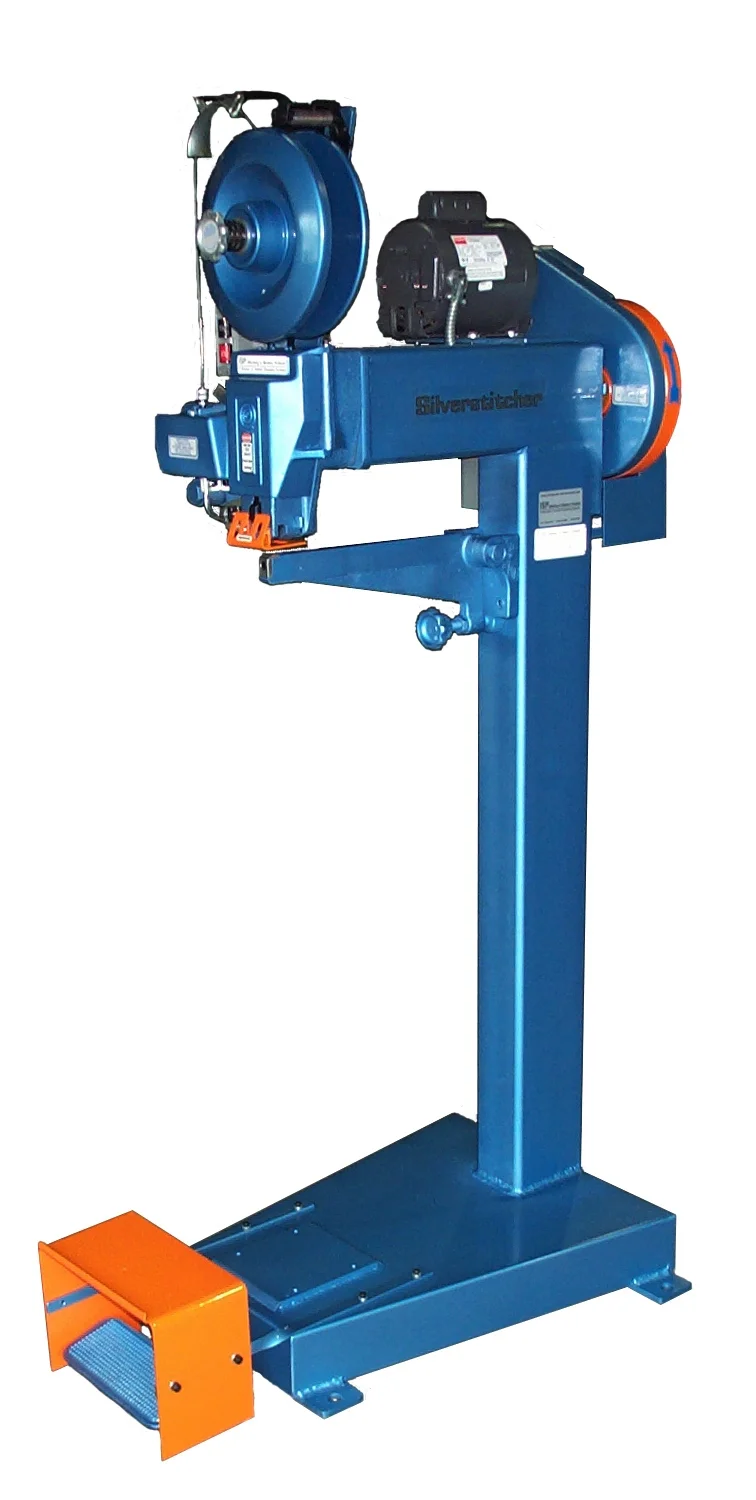

Model HF16A dark.jpg

HF16A SPECIFICATION:

Distance from Front of Frame to Clincher  -  16" [41cm]

Distance from Top of Base to Clincher  -  41.5" [105cm]

Maximum Size Box Handled (Including Top Flaps)  -  32" [81cm] Width

Maximum Size Box Handled (Including Top Flaps)  -  41.25" [105cm] Depth

Standard Crown Stitch Size  -  7/16" [11mm]

Optional Crown Stitch Size  -  1.25" [32mm]

Wire Sizes available  -   .103x.014 / .103x.017 / .103x.020

                          [2.6mm x .4mm / 2.6mm x .45mm / 2.6mm x  .5mm]

Coil Capacity  -  25 lb [11kg]

Stitches per minute  -  250

Trip Mechanism - Mechanical, optional Electric, foot operated

Motor - 1/3 HP, 1725 RPM, 115V/60Hz/AC , Single Phase

Dimensions (W x D x H) - 40" x 48" x  78" [102cm x 122cm x 198cm]

Approximate Shipping Weight (lb)  -  515 [234kg]



HF25A SPECIFICATION DIFFER FROM ABOVE:

Distance from Front of Frame to Clincher  -  25" [64cm]

Maximum Size Box Handled (Including Top Flaps)  -  50" [127cm] Width

Maximum Size Box Handled (Including Top Flaps)  -  40.25" [102cm] Depth

Approximate Shipping Weight (lb)  -  535 [243kg]



NOTES:

All standard flat wire sizes can be used on these machines with additional parts

Also available in 230V/50Hz


HF16P and HF25P SilverStitcher

Use a Post-type stapler for setting up regular slotted boxes, overlap slotted boxes, full overlap boxes or half-slotted boxes with partial covers. Post-type stapler close bottoms of slotted boxes quickly, securely. Select a model to meet your production requirements, using either narrow or wide crown stitching.

For production up to 3000 boxes per day, choose a regular duty Silverstitcher. These proven units are simple to operate and built solid to give maximum performance . . . all day long.

For heavy-duty work, such as stapling three pieces of single wall corrugated, two pieces of double or triple wall, or for assembly of solid fiberboard boxes, select an ISP S5 Heavy Duty Stapler.


HF16P SPECIFICATION:

Distance from Front of Frame to Clincher  -  16" [41cm]

Distance from Top of Base to Clincher*  -  41.5" [105cm]

Maximum Size Box Handled (Including Top Flaps)  -  32" [81cm] Width

Maximum Size Box Handled (Including Top Flaps)  -  41.25" [105cm] Depth

Standard Crown Stitch Size  -  7/16" [11mm]

Optional Crown Stitch Size  -  1.25" [32mm]

Wire Size (Arcuate optional) -   .103x.014 | .103x.017 | .103x.020

                        [2.6mm x .4mm / 2.6mm x .45mm / 2.6mm x  .5mm]

Coil Capacity  -  25 lb [11kg]

Stitches per minute  -  250

Trip Mechanism - Foot operated

Motor - 1/3 HP, 1725 RPM, 115V/60Hz/AC , Single Phase

Dimensions (W x D x H) - 40" x 48" x  78" [102cm x 122cm x 198cm]

Approximate Shipping Weight  -  515 lb [242kg]



HF25P SPECIFICATIONS THAT DIFFER FROM ABOVE:

Distance from Front of Frame to Clincher  -  25" [63.5]

Maximum Size Box Handled (Including Top Flaps)  -  50" [127cm] Width

Maximum Size Box Handled (Including Top Flaps)  -  40.25" [102cm] Depth

Approximate Shipping Weight (lb)  -  535 [197kg]



NOTES:

All standard flat wire sizes can be used on these machines

Also available in 230V/50Hz
