S5F16P (S5F25P)

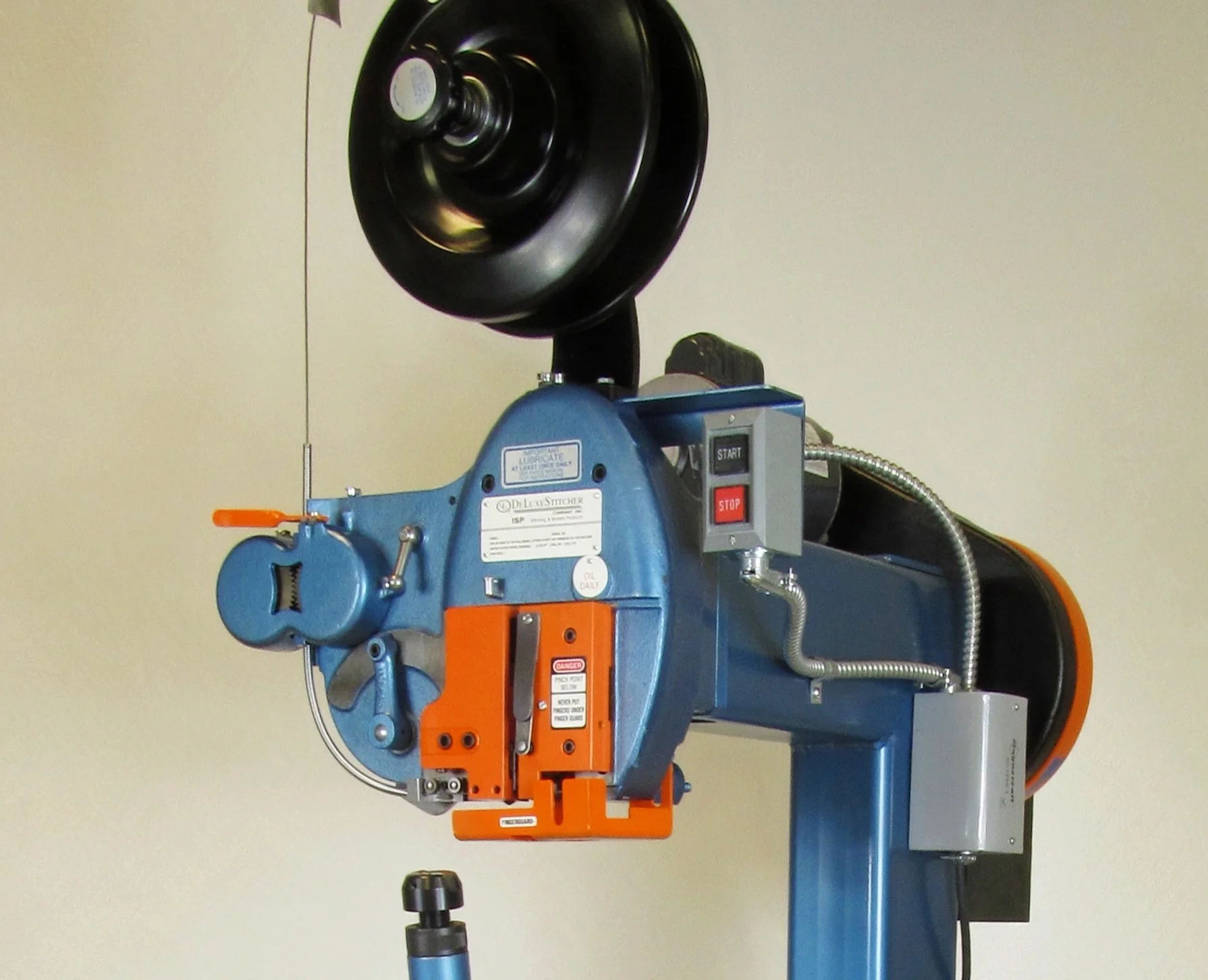

Heavy Duty Post-type stapler for setting up regular slotted boxes, overlap slotted boxes, full overlap boxes or half-slotted boxes with partial covers. Post-type staplers close bottoms of slotted boxes quickly, securely. Select a model to meet your production requirements, using either narrow or wide crown stitching.

The guidelines stand pretty true for most bottom box stapling applications using our staplers and a box with standard “C” flute corrugated board.

• Single wall corrugated: Our HF stapler with normal .103”x.020” wire

• Double wall corrugated: Our adjustable S5 models of stapler with .103”x.020” or .023” wire

• Triple wall corrugated: Our S5 models of machines, with up to .103”x.028” Arcuate wire

For heavy-duty work, such as stapling three pieces of single wall corrugated, two pieces of double or triple wall, or for assembly of solid fiberboard boxes.

Optional equipment includes a fatigue-reducing electric trip pedal.

S5F16P SPECIFICATION:

Distance from Front of Frame to Clincher  -  16" [41cm]

Distance from Top of Base to Clincher*  -  41.5" [105cm]

Maximum Size Box Handled (Including Top Flaps)  -  32" [81cm] Width

Maximum Size Box Handled (Including Top Flaps)  -  41.25" [105] Depth

Standard Crown Stitch Size  -  7/16" [11mm]

Optional Crown Stitch Size  -  1.25" [32mm]

Wire Size (Arcuate) -   .103x.014 | .103x.017 | .103x.020 | .103x.023

                             [2.6mm x .4mm / 2.6mm x .45mm / 2.6mm x  .5mm]

Coil Capacity  -  25 lb [11kg]

Stitches per minute  -  250

Trip Mechanism - Mechanical, optional electric, foot operated

Motor - 1/3 HP, 1725 RPM, 115V/60Hz/AC , Single Phase

Dimensions (W x D x H) - 40" x 48" x  78" [102cm x 122cm x 198cm]

Approximate Shipping Weight (lb)  -  458 [207kg]

S5F25P SPECIFICATION DIFFER FROM ABOVE:

Distance from Front of Frame to Clincher  -  25" [64cm]

Maximum Size Box Handled (Including Top Flaps)  -  50" [127cm ] Width

Maximum Size Box Handled (Including Top Flaps)  -  40.25" [102cm] Depth

Approximate Shipping Weight (lb)  -  545 [247kg]

NOTES:

All standard flat wire sizes can be used on these machines

Also available in 230V/50Hz
